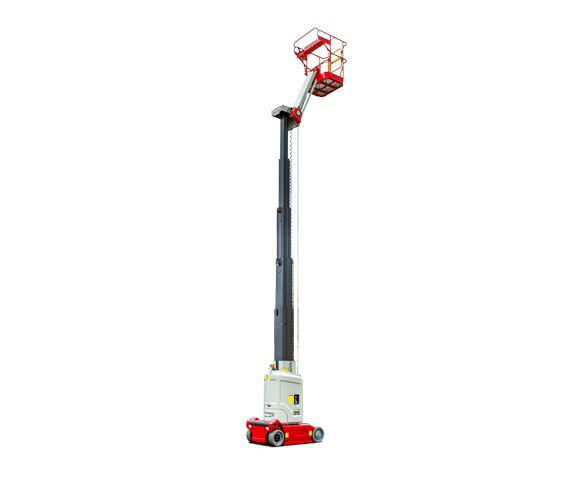

The MEC MME30RJ personnel lift is a high-performing option for precision work in tight spaces throughout Las Vegas and Southern Nevada. Ideal for window cleaning, electrical installation, or facility maintenance at elevated heights, it also supports event crews handling stage and lighting setups. Its compact profile allows it to move through standard doorways while still providing excellent working reach.
| Indoor Platform Height | 30 ft |
|---|---|
| Outdoor Platform Height | 27 ft |
| Maximum Horizontal Reach | 8 ft 6 in |
| Up and Over Height | 25 ft |
| Stowed Height (Top of Mast) | 6 ft 7 in |
| Ground Clearance (Stowed) | 2.75 in |
| Platform Stowed Height | 13 in |
| Chassis Width | 40 in |
| Platform Width | 40 in |
| Platform Depth | 30 in |
| Total Lift Capacity | 500 lbs |
| Personnel Capacity | 1 |
| Raise Speed | 42 s |
| Lower Speed | 38 s |
| Drive Speed (Stowed) | 2.8 mph |
| Drive Speed (Elevated) | 0.5 mph |
| Gradeability (Stowed) | 25% |
| Turning Radius (Inside) | 12 in |
| Turret Rotation | 345 degrees |
| Jib Movement | 135 degrees |
| Weight | 6,600 lbs |
| Power Source | 24 volts (4 x 6 volt AGM Batteries) |
| Controls | Proportional Drive and Lift Controls |
| Tires | 15 in x 5 in |
| Tilt Sensor | 2 degrees side to side, |
| Indoor Platform Height | 30 ft |
|---|---|
| Outdoor Platform Height | 27 ft |
| Maximum Horizontal Reach | 8 ft 6 in |
| Up and Over Height | 25 ft |
| Stowed Height (Top of Mast) | 6 ft 7 in |
| Ground Clearance (Stowed) | 2.75 in |
| Platform Stowed Height | 13 in |
| Chassis Width | 40 in |
| Platform Width | 40 in |
| Platform Depth | 30 in |
| Total Lift Capacity | 500 lbs |
| Personnel Capacity | 1 |
| Raise Speed | 42 s |
| Lower Speed | 38 s |
| Drive Speed (Stowed) | 2.8 mph |
| Drive Speed (Elevated) | 0.5 mph |
| Gradeability (Stowed) | 25% |
| Turning Radius (Inside) | 12 in |
| Turret Rotation | 345 degrees |
| Jib Movement | 135 degrees |
| Weight | 6,600 lbs |
| Power Source | 24 volts (4 x 6 volt AGM Batteries) |
| Controls | Proportional Drive and Lift Controls |
| Tires | 15 in x 5 in |
| Tilt Sensor | 2 degrees side to side, |
